Research Article - Interventional Cardiology (2020) Volume 12, Issue 1
Clinical parameters and its association with coronary involvement in diabetic vs. non-diabetic cad patients with reference to syntax score
- Corresponding Author:
- Tejas Shah
Department of Cardiology, Sumandeep
Vidyapeeth, Vadodara, Gujarat, India
Tel: +91 8951274202
E-mail: [email protected]
Background: Cardiac involvement is one of the commonest causes of morbidity and mortality in patients with diabetes. It manifest as coronary artery disease. Definitive diagnosis, precise assessment of CAD requires invasive diagnostic modality like conventional coronary angiography and its anatomic severity can be judged by Syntax score.
Aims and objectives: 1) Extent and severity of coronary artery disease with reference to Syntax score between diabetics Vs Non diabetics. 2) Correlation between fasting glucose, Glycated Hemoglobin (Hb A1c),TC/HDL-C ratio, BMI (body mass index) and severity of coronary artery disease.
Materials and methodology: 200 patients (100 Diabetics and 100 Non diabetics) after meeting inclusion and exclusion criteria, admitted with symptoms of acute or chronic coronary syndrome, scheduled to undergo coronary angiogram were taken.
Results: In our study duration of diabetes and severity of coronary artery disease was not correlating but as compared to non-diabetics,diabetics had higher syntax score, 23-32 30(30%) were diabetics, while 13(13%)were nondiabetics, and score>33 9, (9%) diabetics as compared to nondiabetic has 1%,p value<0.001. Diabetics have more numbers of TVD (Triple Vessel Disease) 52% as compared to nondiabetics 12%, p value<0.001. Diabetics had more numbers of Total occlusion of vessel (p=0.027), Calcification (p=0.003), Proximal vessel involvement, (p=0.000), CTO (chronic total occlusion), p=0.027 and diffusely disease vessels (p=0.000), as compared to nondiabetics. Biochemical parameters like FBS, HbA1c and clinical parameters like BMI and Hypertension were not correlating with severity of coronary artery disease. In controls age is highly correlated with severity of coronary artery disease with correlation coefficient of 0.363 (p value=0.0001) whereas in cases TC/HDL is highly correlated with severity of coronary artery disease with correlation coefficient of 0.205 (p value 0.041).
Conclusion: Diabetics have more numbers of Total vessel occlusion, CTOs, Proximal vessel involvement, calcifications and diffuse CAD.TC/HDL is better parameter to predict severity of CAD.
Coronary Artery Disease; Syntax score; Chronic Total Occlusion (CTO)
Globally, People with diabetes has increased alarmingly since 1985 and the rate of new cases is by 2003 was approximately 194 million people, which increase to almost 350 million by 2025 . Diabetes mellitus is a very strong risk factor the development of CHD and stroke . In diabetics the incidence and severity of Microvascular disease (nephropathy, retinopathy, neuropathy, and peripheral small vessel disease) are directly related to the duration and severity of hyperglycemia and macrovascular disease (coronary, cerebrovascular and peripheral vascular) is related to Insulin Resistence and hyper Insulinemia with diffuse vessel involvement [3-6]. In Non-diabetic patients besides hypercholesterolemia, increasing number of components of the metabolic syndrome was shown to be significantly correlated to the severity of coronary artery disease. Increased concentrations of triglyceride-rich VLDL particles contribute to abnormal HDL metabolism in insulin resistance, which causes premature atherosclerosis and death in diabetic patients [7-10].
Diabetics experience higher mortality and morbidity after Acute Coronary Syndrome (ACS) and Myocardial Infraction (MI) than people without diabetes . Recent evidence has indicated that chronic severe hyperglycemia and a long duration of the disease both enhance the risk of fatal and nonfatal ischemic events [12-14]. It induces nonenzymatic glycation of proteins and lipids resulting in increased AGEs (Advance Glycated End products) formation [15,16]. Another hypothesis in diabetics is endothelial dysfunction as the central initiating factor of the increased atherosclerosis which have been associated with an increased risk of CVD [17,18].
Studies have shown that patients with diabetes more frequently have left main coronary artery lesions, multi vessel disease which is more severe and diffuse as well as more calcified and complicated lesions . Diabetics exhibited more complicated atherosclerotic plaques with ulcer, thrombosis and hemorrhages.
Materials and Method

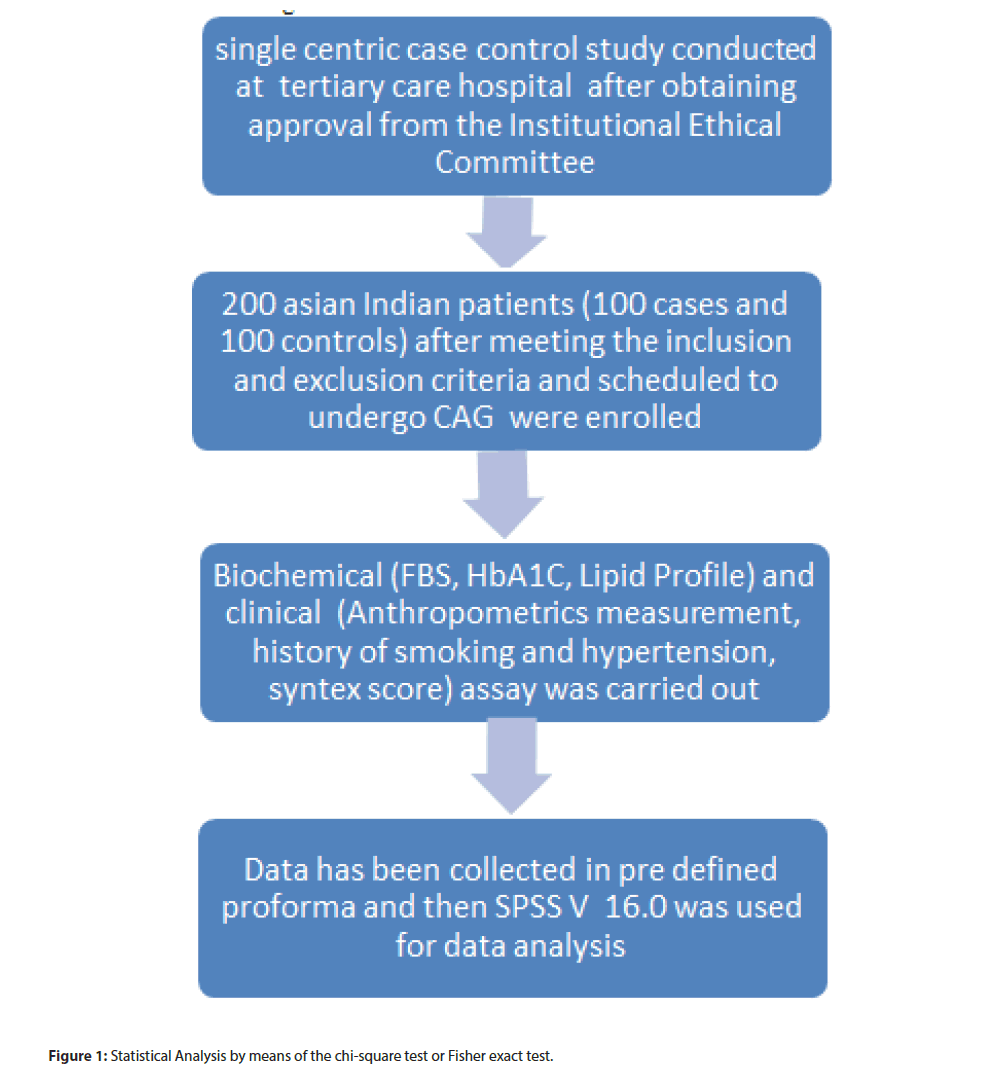

This was a single center, case control study conducted at tertiary care hospital attached with medical college. Sample size was calculated as per the following formula. N=2(zα+zβ)σ2/d2. 200 Asian Indian patients (100 cases and 100 controls) after meeting the inclusion and exclusion criteria and scheduled to undergo CAG were enrolled.
Cases were Diabetics with age between (35-70 years), who were taking Biguanides, Sulphonylureas or Alpha-glucosidase inhibitors. While controls were Non diabetics with same age groups were taken. Patients were not on antiplatelets, statins, B-blockers, ACE inhibitors, ARB or Nitrates. Hypertensive patients were on alpha blockers, central sympatholytics, vasodilators or diuretics group of drugs. Coronary angiography was performed after diagnosing coronary syndrome in cases and controls. Patients with Type I Diabetes, Pregnant female, CKD (chronic kidney disease), Family and past history of IHD and age>70 years were excluded.
The study was conducted after obtaining approval from the Institutional Ethical Committee. After written informed consent, detailed history was taken from all patients scheduled to undergo coronary angiogram, admitted with symptoms of ischemic heart disease. Following biochemical and clinical assay was carried out.
1) Anthropometric Parameters: Height weight and BMI (kg/mt2) was measured according to WHO norms .
Waist Circumference: For the Asian Indians . Normal Values:
1. Males: <90 cm as normal and >90 cm as having central obesity.
2. Females: <80 cm as normal and >80 cm as having central obesity
2) Fasting Lipid Profile: The serum (venous blood) is separated and analysed using Hitachi P 800 auto analyser. Values were considered normal according to our laboratory reference values.
Total Cholesterol (TC), Normal Value: <200 mg/dl
HDL Cholesterol (HDL-C), Normal Value: ≥ 40 mg/dl
Triglycerides: Normal values-<150 mg/dl.
LDL Cholesterol (LDL-C): it is calculated using the following formula
LDL-C=[Total Cholesterol – (HDL-C+VLDL-C)]
VLDL-C=Serum Triglycerides/5 mg/dl
Normal Value: Upto 100 mg/dl.
Ratio of Total cholesterol to HDL-C, Normal: 3.5-5
3) Fasting Glucose: The plasma (venous blood) is separated and analysed using Hitachi P800 auto analyser. The estimation of glucose is based on GOD-POD method. Reference Value: <126 mg/dl.
4) HbA1c: HbA1c is analysed by affinity chromatography.
Reference Value: <6.5
5) Severity of Ischemic heart disease: severity of ischemic heart disease will be assessed by syntax scoring system. It is calculated with help of online CARDI∞LYSIS, Boston Scientific, online 2.11 calculator.
Key angiographic features
Right or left dominant system
Number of artery segments involved per atherosclerotic lesion.
Number of segments involved
Age of total occlusion
Presence of blunt stump
Presence of bridging collaterals
Antegrade vs. retrograde filling of the first segment beyond the occlusion.
Side branch involvement
- Trifurcation lesion: number of vessel segments diseased
- Bifurcation lesion: angulation between the distal main vessel and the side branch<700
- Presence of an aorto-ostial atherosclerotic lesion
Presence of severe vessel tortuosity at lesion site
- Atherosclerotic lesion length>20 mm
- Presence of heavily calcified plaque
- Presence of thrombuss
- Presence of diffuse or small vessel disease
Scoring was graded between 0-22, 23-32, >33.
Statistical analysis was performed using SPSS. Data were summarized using descriptive statistics, presented as proportions (%, count/sample size) or mean ± SD. Continuous variables were compared with the use of the student t test; differences in discrete variables were assessed by means of the chi-square test or Fisher exact test, as appropriate. Pearson coefficient of correlation was used to analyze correlation between outcome variables. p value of<0.05 will be taken as significant (Figure 1).
Observation and Results
The present study was conducted in tertiary care center. 200 patients, 100 cases and 100 controls were taken. Following observations were made from study (Tables 1-6).
|Variable||N||Cases||Control||Average||t value||p value|
|Age||100||58.51 ± 8.95||56.91 ± 9.37||57.71 ± 9.18||1.234||0.219|
|Wt||100||64.83 ± 12.65||64.37 ± 12.25||64.60 ± 12.42||0.264||0.792|
|BMI||100||25.20 ± 4.17||23.55 ± 3.72||24.37 ± 4.03||2.949||0.004|
|WC||100||35.42 ± 4.43||34.22 ± 4.92||34.82 ± 4.71||1.816||0.071|
|FBS||100||189.35 ± 72.01||111.69 ± 34.40||150.52 ± 68.44||9.731||0.001|
|HbA1C||100||9.00 ± 1.70||5.92 ± 1.12||7.46 ± 2.11||15.192||0.001|
|TC||100||183.20 ± 58.59||183.37 ± 47.50||183.29 ± 53.20||0.023||0.982|
|LDL||100||118.17 ± 50.28||116.18 ± 40.43||117.17 ± 45.52||0.308||0.758|
|HDL||100||41.83 ± 12.84||42.64 ± 12.66||42.23 ± 12.73||0.450||0.653|
|Score||100||18.77 ± 9.72||13.16 ± 8.01||15.97 ± 9.32||4.454||0.001|
|TG||100||128.29 ± 57.61||117.95 ± 65.66||123.12 ± 61.83||1.184||0.238|
|TC/HDL||100||4.67 ± 1.61||4.60 ± 1.73||4.63 ± 1.67||0.286||0.775|
Table 1: Comparison of Demographic and Biochemical Parameters in cases and control.
|Variable||X2 value||p value||Fisher exact test p value|
|Severe Tortuosity * Group||4.735||0.030||Sig|
Table 2: Chart showing comparison between cases and control for syntax score (vessel involvement).
|N (%)||N (%)||N (%)|
|Single Vessel Disease (SVD)||17 (17.00%)||37 (37.00%)||54 (27.00%)|
|Double Vessel Disease (DVD)||31 (31.00%)||46 (46.00%)||77 (38.50%)|
|Triple Vessel Disease (TVD)||52 (52.00%)||12 (12.00%)||64 (32.00%)|
|Normal||0 (0.00%)||03 (03.00%)||3 (1.50%)|
|Other||0 (0.00%)||02(2.00%)||2 (1.00%)|
|Total||100 (100.00%)||100 (100.00%)||200 (100.00%)|
Table 3: Charts showing comparison between cases and control for involvement of vessels (Normal, Single vessel d”s, Double vessel d”s, Triple Vessel d”s.).
|N (%)||N (%)||N (%)|
|0-22||61 (61.00%)||86 (86.00%)||147 (73.50%)|
|23-32||30 (30.00%)||13 (13.00%)||43 (21.50%)|
|≥ 33||9 (09.00%)||1 (01.00%)||10 (05.00%)|
|Total||100 (100.00%)||100 (100.00%)||200 (100.00%)|
Table 4: Chart comparing syntax score among cases and control (Total score).
|DM Duration||Syntax Score||Total|
|< 1 Years||5 (50.00%)||5 (50.00%)||0 (00.00%)||10 (10.00%)|
|1-5 Years||17 (70.8%)||7 (29.2%)||0 (00.00%)||24 (24.00%)|
|5 -10 Years||11 (64.70%)||4 (23.50%)||2 (11.80%)||17 (17.00%)|
|≥ 10 Years||27 (55.10%)||21 (42.90%)||1 (02.00%)||49 (49.00%)|
|Total||60 (60.00%)||37 (37.00%)||3 (03.00%)||100 (100.00%)|
Table 5: Chart showing duration of diabetes and severity of score.
|Pearson Correlation||p value||Pearson Correlation||p value|
Table 6: Chart showing various parameters with its correlation with seventy of score.
In case 69(69%) were males while 31(31%) were females. In controls 82(82%) were males and 18(18%) were females. Mean Age in cases was 58.51 with standard deviation of 8.95, while in control it was 56.91 with standard deviation of 9.37.which was statistically not significant (p value 0.219).Mean weight of cases was 64.83 with standard deviation of 12.65, while in control it was 64.37 with standard deviation of 12.25, which was statistically not significant (p value 0.792). As regards to gender distribution of the study population, most of the patients were male 69(69%) in cases and 82(82%) in controls. In cases 31(31%) were female, while in controls 18(18%). p value was significant (p=0.033).
Mean BMI was 25.20 in cases with standard deviation of 4.17, while in control it was 23.55 with standard deviation 3.72 which was statistically significant (p value=0.004). Mean waist circumference was 35.42 with standard deviation of 4.43 in cases, while for control 34.22 with standard deviation of 4.92. Which was statistically insignificant (p=0.07).Mean FBS in cases was 189.35 mg/dl with standard deviation of 72.01 mg/dl, while in control it was 111.69 mg/dl with standard deviation 34.40 mg/ dl. p value was highly significant (p=0.000). Mean HbAlc Value in case was 9 with standard deviation of 1.70, while in control it was 5.92 with standard deviation of 1.12. P value was highly significant (p=0.000).Mean value of Total cholesterol was 183.20 mg/dl with standard deviation of 58.59 in cases, while in controls it was 183.37 mg/dl with standard deviation of 47.50. P value was statistically not significant (p=0.982). Mean value for Low Density Lipoprotien-cholesterol (LDL-C) was 118.17 mg/dl for cases with standard deviation of 50.28, while in control it was 116.18 mg/ dl with standard deviation of 40.43. p value was not significant (p=0.758).
Mean value for High density Lipoprotein-cholesterol (HDL-C) was 41.83 mg/dl in cases with standard deviation was 12.84, while controls having 42.64 mg/dl and standard deviation of 12.66. p value was statistically not significant (p=0.653).
Mean value of Triglycerides in cases was 128.29 mg/dl with standard deviation of 57.61 mg/dl, while in controls it was 117.95 mg/dl with standard deviation of 65.66 mg/dl. p value was not significant (p=0.238).Mean value for TC/HDL ratio in cases was 4.67 with standard deviation of 1.61, while for control it was 4.60 with standard deviation of 1.73. p value was not significant (p=0.775).
Mean value of Syntax score in cases 18.77 with standard deviation 9.72, while in control 13.16 with standard deviation 8.01. p value was highly significant (p=0.00).
In 100 patient with diabetes 60 (60%) had right dominance System, while 40 (40%) had left dominance system. In control 63 (63%) had right dominance, while 37 (37%) had left dominant system. p value was not significant (p=0.663).
Out of 100 cases 24 (24%) had Total occlusion of vessel, while in control 12 (12%) had Total occlusion of vessel. p value was significant (p=0.027).8 (8%) of cases had Trifurcation lesion, while 18 (18%) of control had Trifurcation lesion. p value was significant (p=0.036).37 (37%) of cases had Bifurcation lesion, while 25 (25%) of control had Bifurcation lesions. p value was not significant (p=0.067).32 (32%) of cases had vessel Angulation in bifurcation lesion<700, while 22 (22%) of control had Angulation in bifurcation lesion<700. p value was not significant (p=0.111). 7 (7%) of cases had Severe Tortuosity, while 17 (17%) of control had Severe Tortuosity. p value was significant (p=0.030).21 (21%) of cases had a lesion Length>20 mm, while 11 (11%) of controls had lesion Length>20 mm. p value was not significant. (p=0.054).23 (23%) of cases had Calcification in lesion, while 8 (8%) of control had Calcification in lesion. p value was highly significant. (p=0.003). 18 (18%) cases had Thrombus in vessel, while 32 (32%) of control had Thrombus. p value was significant. (p=0.022). 42 (42%) cases had Diffuse disease, while 11 (11%) of controls had Diffuse disease. p value was highly significant. (p=0.00).6 (6%) of cases had Aorto-ostial involvement, while 2 (2%) of control had Aorto-ostial involvement. p value was not significant (p=0.149).71 (71%) of cases had Proximal vessel involvement, while 22 (22%) of control had Proximal vessel involvement. p value was highly significant (p=0.00).
20 (20%) of cases had Chronic Total Occlusion (CTO), while 9 (9%) of control had CTO.p value was significant. (p=0.027)3 (3%) of cases had Left main involvement, while 1 (1%) of control had Left main involvement. p value was not significant (p=0.614).
Out of 100 cases majority patient 52 (52%) had Triple vessel disease (TVD), 31 (31%) had Double vessel disease (DVD) and 17(17%) had Single vessel disease (SVD).While in control majority 46 (46%) had Double vessel disease (DVD); followed by 37(37%) had Single vessel disease (SVD); 12 (12%) had Triple vessel disease (TVD). 3(3%) had Normal coronaries out of 2(2%); 1 had minor CAD, other had recanalized Vessel. p value was highly significant (p value=0.00).
Out of 100 cases 61 (61%) patients had score in between 0-22; while 30(30%) had score in between 23-32 and 9(9%) had score above 33.In control 86(86%) had score between 0-22, 14 (14%) had score in between 23-32. While 1(1%) had score>33. p value was highly significant (p=0.00).
Diabetic patient were divided according to duration of disease<1 year, 1 to 5 year; 5 to 10 year and more than 10 years, which was compared with score<22; 22-32 and >33.
Results showed that majority of patients had duration of diabetes 10 years and above, out of 49 cases, 27 had score between 0-22,21 had score between 23-32,1 had score>33. Diabetes of <1year duration, 10 out of 5 had score<22, remaining had between 23- 32. Those who had 1 to 5 years duration of diabetes, out of 24, 17 had score<22, while 7 had in between 23-32.In 5-10 year of diabetes duration, out of 17 patient 11 had score<22, 4 had score 23-32; 2 had score>33. As duration of diabetes has increased score has increased but, P value for this is not statistically significant (p=0.287).
Patients in control group, Age was significantly associated with severity of Syntax score. p value of 0.000, while it was not correlating with cases. Body Mass Index (BMI) in cases and control was not correlating with severity of Syntax score, p value 0.472 in control, p=0.802 cases. Smoking and Hypertension were not correlating with severity of syntax score in cases and controls, p=0.326, p=0.72 for cases and p=0.341, p=0.491 for controls respectively. Fasting blood sugar was not correlating with severity of Syntax score in both cases and control group, with p value 0.262, and p value 0.87 respectively. Patients in control group, Age was significantly associated with severity of Syntax score. p value of 0.000, while it was not correlating with cases. Body Mass Index (BMI) in cases and control was not correlating with severity of Syntax score, p value 0.472 in control, p=0.802 cases. Smoking and Hypertension were not correlating with severity of syntax score in cases and controls, p=0.326, p=0.72 for cases and p=0.341, p=0.491 for controls respectively. Fasting blood sugar was not correlating with severity of Syntax score in both cases and control group, with p value 0.262, and p value 0.87 respectively. Glycosylated Hb (HbAlc) was not correlating with the severity of Syntax score in cases and control with p value=0.26 in cases and p value 0.780 in control. Total cholesterol; Low density lipoprotein (LDL), High density lipoprotein (HDL), Triglyceride were not correlating with severity of Syntax score in cases and control. p values for cases were 0.6, 0.7, 0.1, 0.8, while for control p values were 0.6, 0.4, 0.3, and 0.07 respectively.
TC/HDL ratio was statistically significantly correlating with severity of Syntax score in cases; p value was 0.04, while in control it was not correlating.
In our study except TC: HDL ratio, none of the parameters like BMI, Hypertension, Smoking, and HbA1c was statistically significantly associated with severity of coronary artery disease in diabetic population. Duration of diabetes was not correlating with severity of coronary artery disease. Diabetics had more numbers of TVD, Total occlusion of vessel, CTO, proximal vessel involvement, calcification and diffusely diseased vessel as compared to Nondiabetics.
Data suggest that the incidence of coronary artery disease rises consistently with increasing age and at an age of 60 years; patients have five told increase risk of disease manifestation than at the age of 40 years .
In our study we found that majority of patients here between 51- 70 years of age. With mean value for cases around 58 year and for control 56 year. More numbers of patients with higher syntax score in the age groups of 50 to 70 years also had more number of DVD and TVD. In a study conducted by Rafaela a drade Penalva et al., they found that mean age was higher in double vessel and triple vessel disease group, as compared to single vessel subgroup .
Male gender is a recognized risk factor [24,25]. Between ages of 35-55 years, the mortality rates of ischemic heart disease for white women were one-fifth than of white man 24. After menopause, however the risk is almost equal. In our study we found that there was male preponderance, with statistically significant correlation.
Epidemiologic studies of treated and untreated hypertensive patients confirmed that there was a gradually increasing incidence of CAD, stroke and cardiovascular mortality as the blood pressure rises above 110/75 mm Hg.25 CAD is much more common in patients with both DM and Hypertension than in patients with DM or Hypertension alone, and the development of atherosclerosis was found to be accelerated [26,27]. In our study group more number of diabetics had hypertension as compare to non-diadetics. Duration of Hypertension was statistically significantly more in diabetic group.
Acute coronary syndrome presentation: In the Framingham Heart study, 32%-42% of diabetic patients with myocardial infarction had atypical symptoms (dyspnoea, fatigue, confusion,nausea and vomitting) compared to 6%-15% of those patients without diabetes and it was silent [28,29]. In our study Diabetic patients who presented with coronary syndrome, 23% had atypical symptoms like presyncope, giddiness, bloating sensation and vomiting.
In cases, who had Acute Myocardial infarction were 36%, while controls were 53%. 64% of cases presented with chronic stable Angina, unstable angina or Non ST elevation MI,while in control it was 47 (47%).p value was significant (p=0.016).
Diabetic patients who presented with Acute Myocardial infarction had significantly more killip class,LV Dysfunction as compared to non-diabetes, which is correlating with study conducted by keun- Ho park et al. . In addition it was found that they were more likely to develop a worsening of killip class at admission and a higher incidence of heart failure .
Smoking: Smoking is risk factor for development of atherosclerosis. The risk of CVD is doubled in patients with diabetes who smoke cigarettes and the benefits of modifying other risk factors are substantially attenuated . Smokers had Triple vessel disease, more number of diffusely diseased vessels and more number of total occlusion in our study .
With regard to Body Mass Index (BMI), it was observed that when compared to mean value it was statistically significantly higher in DM in our study. While waist circumference was not higher. Obesity increases risk for development of type 2 diabetes, CHD, stroke, hypertension, and is associated with insulin resistance in normoglycemic individuals as well as those with type 2 diabetes [34-36]. The linkage between obesity and diabetes is so strong that some experts have coined a new term to describe it, diabesity [37,38]. BMI was not statistically correlating to severity of score in our study.
Diabetes dyslipidemia refers to atherogenic dyslipidemia occurring in persons with type 2 diabetes and is characterized by the triad of elevated Triglycerides (TG) levels, reduced High density lipoprotein cholesterol (HDL-C) levels and a preponderance of small dense Low-density lipoprotein cholesterol (LDL-C) particles often referred to as “atherogenic dyslipidemia” [39,40]. All of the three components of this atherogenic dyslipidemia triad are associated with atherogenesis and increased CHD risk [41-43].
When compared to non-diabetic in our study population Total cholesterol, Triglyceride, Low Density Lipoprotein and High Density Lipoprotein was not significantly correlating with syntax score, while TC/HDL ratio was statistically significantly correlating with severity of syntax score.
Glycated Hemoglobin (HbAlc) reflects the average blood glucose concentrations over the preceding 3 months . Compare with the fasting blood glucose test, HbAlc has several advantages,it has higher repeatability, can be assessed in non-fasting state, and more convenient test with less biological variability and greater stability [45,46]. Studies have found an association between elevated cardiovascular risk and elevated HbAlc level independent of classical risk factor . Chronic hyperglycemia is associated with an increased risk for cardiovascular outcomes and all-cause mortality among patients with type 2 diabetes .
However some clinical trials have shown little benefit and possibly some harm, of lowering the glycated hemoglobin value in patients with DM to prevent cardiovascular outcomes .
In our study Mean value of FBS and HbAlc was statistically highly significant in cases, but it was not correlating with severity of scores.
In diabetics incidence and predominance of CAD is seen even during the stage of impaired glucose tolerance (IGT), which precedes the clinical appearance of diabetes mellitus . It has been reported based on postmortem as well as angiographic studies that CAD in diabetics is more severe and diffuse . There are also studies that contradict this result [52,53].
In our study it has found that as compared to non-diabetic patients, Diabetics has significant Triple vessel disease, Total occlusion of vessels, Calcified vessel, and diffuse vessel involvement. In diabetics other parameters like involvement of Proximal vessel and Chronic total occlusion (CTO) are significantly higher, while in non-diabetics there are more significant Trifurcation lesion, severe tortuosity and more Thrombus containing lesions.
In terms of syntax score and involvement of vessels (i.e., Single vessels, Double vessel and Triple vessel) it has found that diabetic patient has score>23-32, >33 and more of TVD (Triple vessel disease). p value=0.000.This suggest that Multi-vessel disease, involvement of proximal and distal segments in the same vessel, and number of occluded segments, ostial involvement and left main disease in the coronary artery were higher in diabetics .
Correlation between severity of CAD and duration of diabetes mellitus:
Our results showed that there is a no statistically significant correlation between duration of diabetes and severity of CAD, in term of SYNTAX scores (p value=0.28).Study performed by A. Natali and Roldano Scognamiglio et al. showed that major risk factors in diabetes like smoking, hypertension, hypercholesterolemia, premature CAD, retinopathy, PVD, HbA1c, and duration of diabetes did not emerge as significant predictors of myocardial perfusion abnormalities or significant CAD.
When duration of DM was compared with pattern of CAD, we observed that it is significantly associated with number of diseased vessels, diseased segments, diffusely diseased vessels, calcification, proximal involvement and total occlusion .
Our study is a single-center observational experience; patients were only those who underwent coronary angiogram. These patients comprise some patients with CAD and may not represent all patients with CAD and Diabetes Mellitus. Substantial information on asymptomatic diabetic patients or those refusing invasive clinical techniques is lacking, when considering increased incidence of painless myocardial infarction among diabetics.
Conventional risk factors like BMI, Hypertension, Smoking, TC: HDL ratio, and poorly controlled diabetes are strongly associated with coronary artery disease, but in our study except TC: HDL ratio, none of the parameter was statistically significantly associated with severity of coronary artery disease in diabetic population. Duration of diabetes was not correlating with severity of coronary artery disease. Diabetics had more numbers of TVD, Total occlusion of vessel, CTO, proximal vessel involvement, calcification and diffusely diseased vessel. Non-diabetics had significant Trifurcation lesion, severe tortuosity and more Thrombus containing lesions.
Conflict of Interest
Authors have declared that they have no conflict of interest.
