Image Article - Imaging in Medicine (2022) Volume 14, Issue 6

Folding Fan Sign of Closed-Loop Obstruction

Koki Kawanishi1*, Yoshifumi Ikeda1, Masayuki Kitano2

1Department of Gastroenterology, Nate Hospital, 294-1 Nate Ichiba, Kinokawa City, Wakayama 649-6631, Japan

2Second Department of Internal Medicine, Wakayama Medical University, 811 Kimiidera, Wakayama City, Wakayama 641-0012, Japan

*Corresponding Author:
Koki Kawanishi
Department of Gastroenterology, Nate Hospital, 294-1 Nate Ichiba, Kinokawa City, Wakayama 649-6631, Japan
E-mail: amurosyaa218@yahoo.co.jp

Abstract

We coined the new term folding fan sign on abdominal contrast-enhanced computed tomography for strangulated ileus caused by closed-loop obstruction. It can immediately indicate the necessity for surgical intervention.

Keywords

Beak sign • closed loop • ileus

Case Description

A 73-year-old man was admitted to our hospital because of severe abdominal pain and bilious vomiting. Contrast-enhanced computed tomography (CECT) revealed a dilated small bowel loop. The coronal CECT image demonstrates the so-called beak signs (Figure 1, arrow) adjacent to the folding-fan-shaped lowdensity area in the mesentery and ascites. An emergency surgery was performed. The ascites was hemorrhagic, and an approximately 120-cm segment of the jejunum and ileum was herniated through a slit-like defect in the omentum. The strangulated small bowel loop was removed with an adhesive band. The folding-fan-shaped lowdensity area on CECT, which we named “folding fan sign,” turned out to be a severely congested mesentery with hemorrhagic change. Computed tomography image demonstrated a calcification in the abdominal cavity at the area where the two beak signs met (Figure 2, arrow). This calcification and adhesive band might have developed owing to inflammation from tuberculosis, as the patient had a history of lung tuberculosis.

imaging-medicine-coronal

Figure 1: The white arrows in the coronal contrast-enhanced computed tomography image demonstrate “beak signs” adjacent to the foldingfan- shaped low-density area in the mesentery and ascites.

imaging-medicine-computed

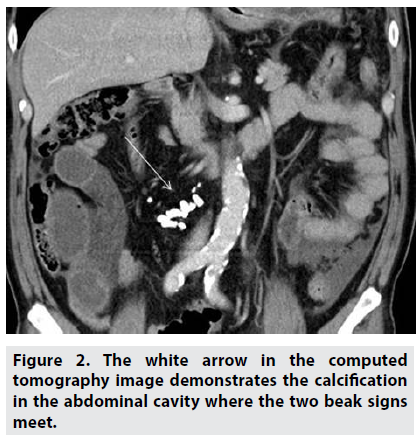

Figure 2: The white arrow in the computed tomography image demonstrates the calcification in the abdominal cavity where the two beak signs meet.

In conclusion, the folding fan sign on CECT in patients with ileus can provide physicians with information of the immediate necessity for surgical intervention because it can serve as a marker of strangulated ileus from closed-loop obstruction.
